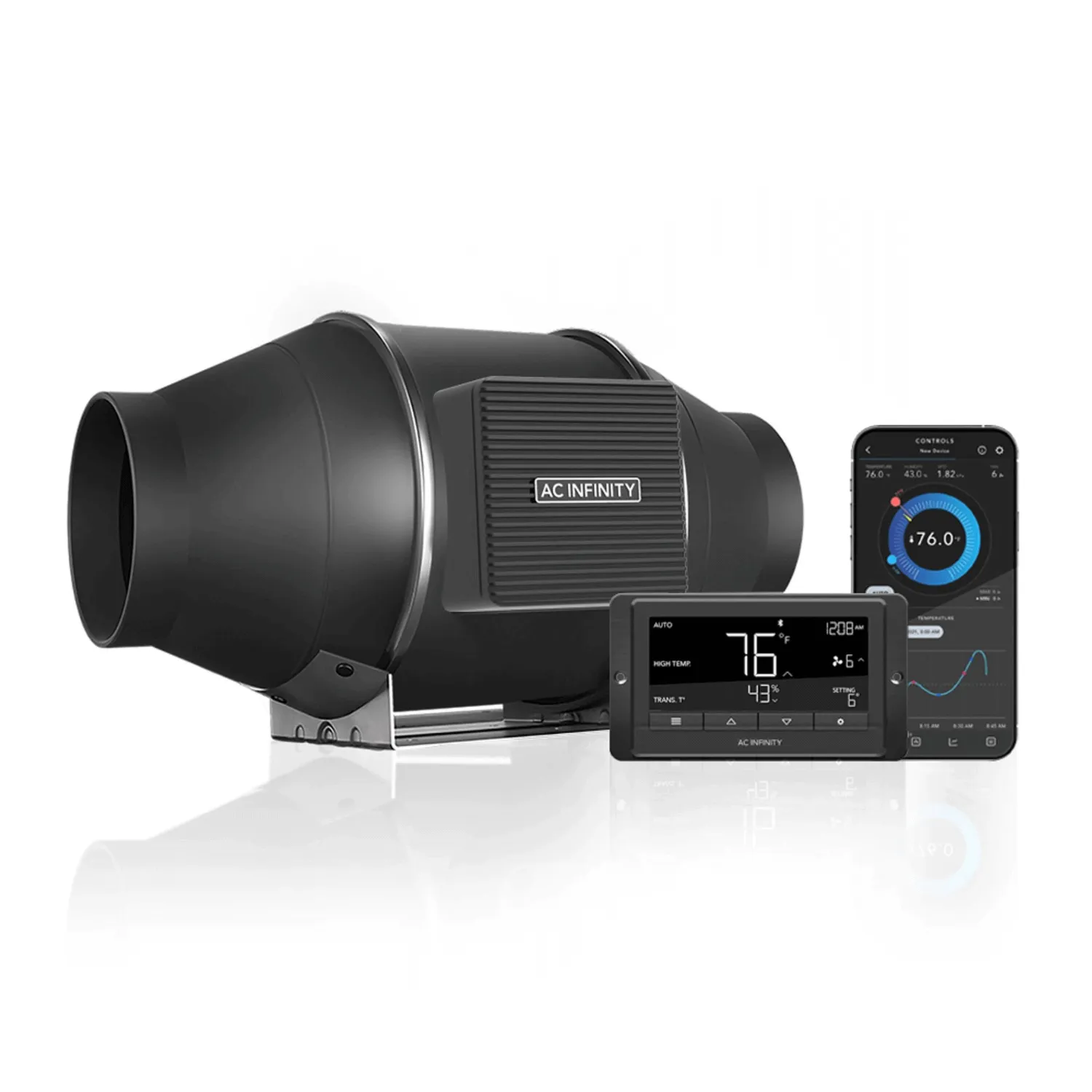

Name: AC Infinity CLOUDLINE T4, Quiet Inline Duct Fan System with Temperature and Humidity Controller, 4-Inch
SKU: 596066

Description

Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.

Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.

Connect with our app via Bluetooth to access advance programs, alarms, notifications, and view climate data.

Mixed flow design combined with a PWM-controlled EC-motor for a truly quiet and energy efficient performance.

Duct Size: 4” | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 205 CFM | Noise: 28 dBA | Bearings: Dual Ball

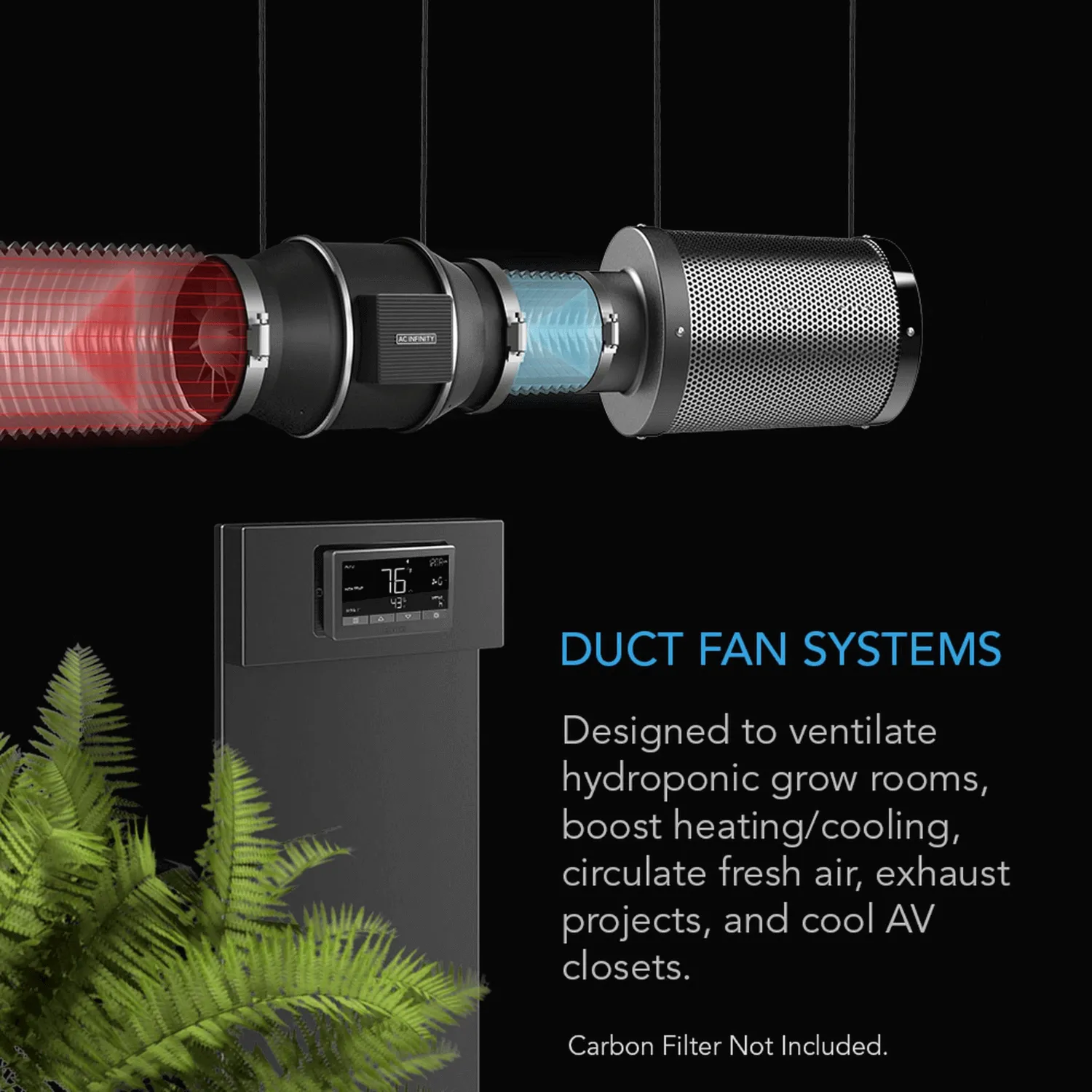

Product Description: A smart inline duct fan designed to quietly ventilate hydroponic grow rooms, boost heating/cooling to rooms, circulate fresh air, exhaust projects, and cool AV closets. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. Contains an EC-motor with PWM-control for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. Includes a smart controller with dynamic climate and time-based programming and can connect to one additional fan. Complete kit includes one duct fan unit, one thermal controller, one corded thermal probe, two duct clamps, installation manual, and all necessary mounting hardware. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

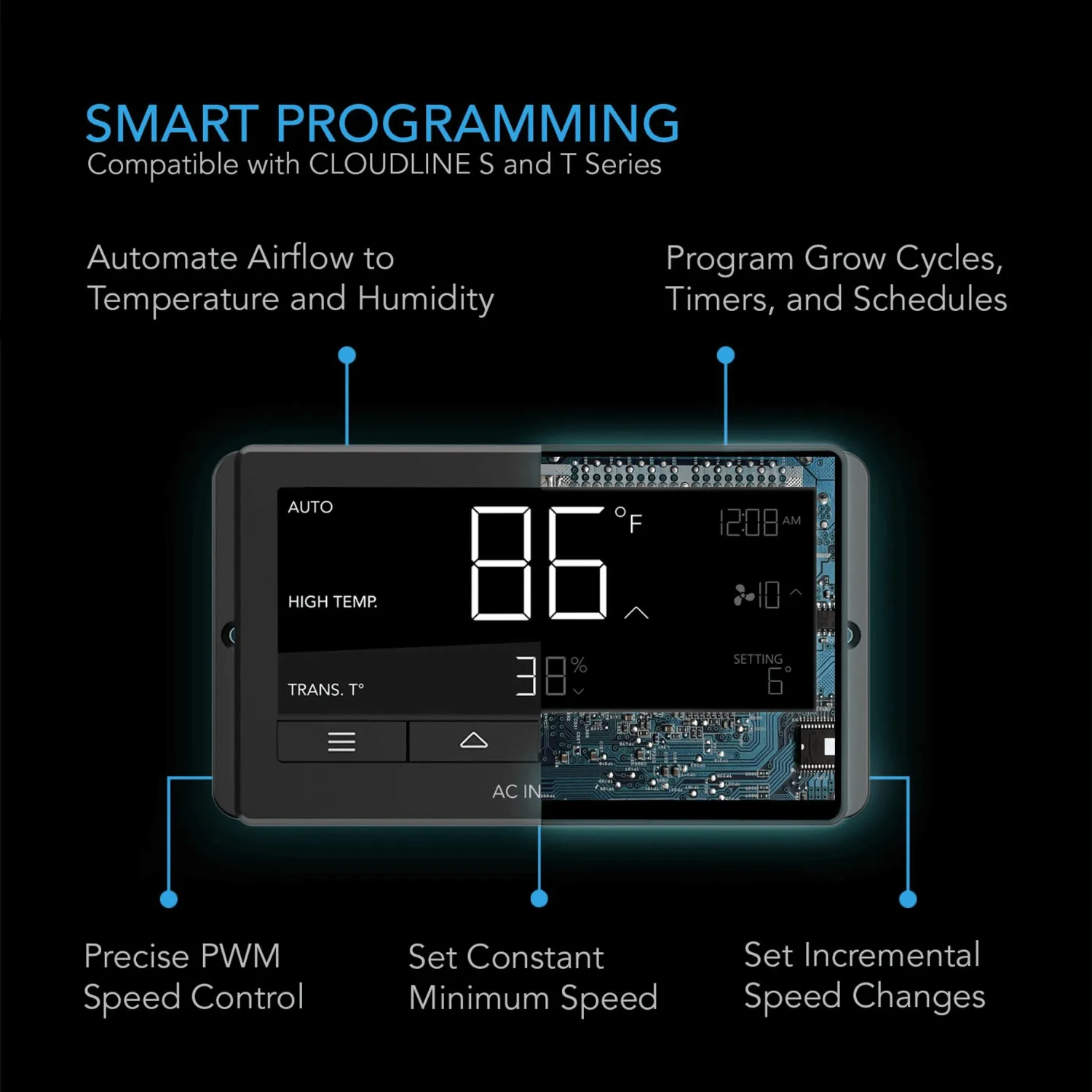

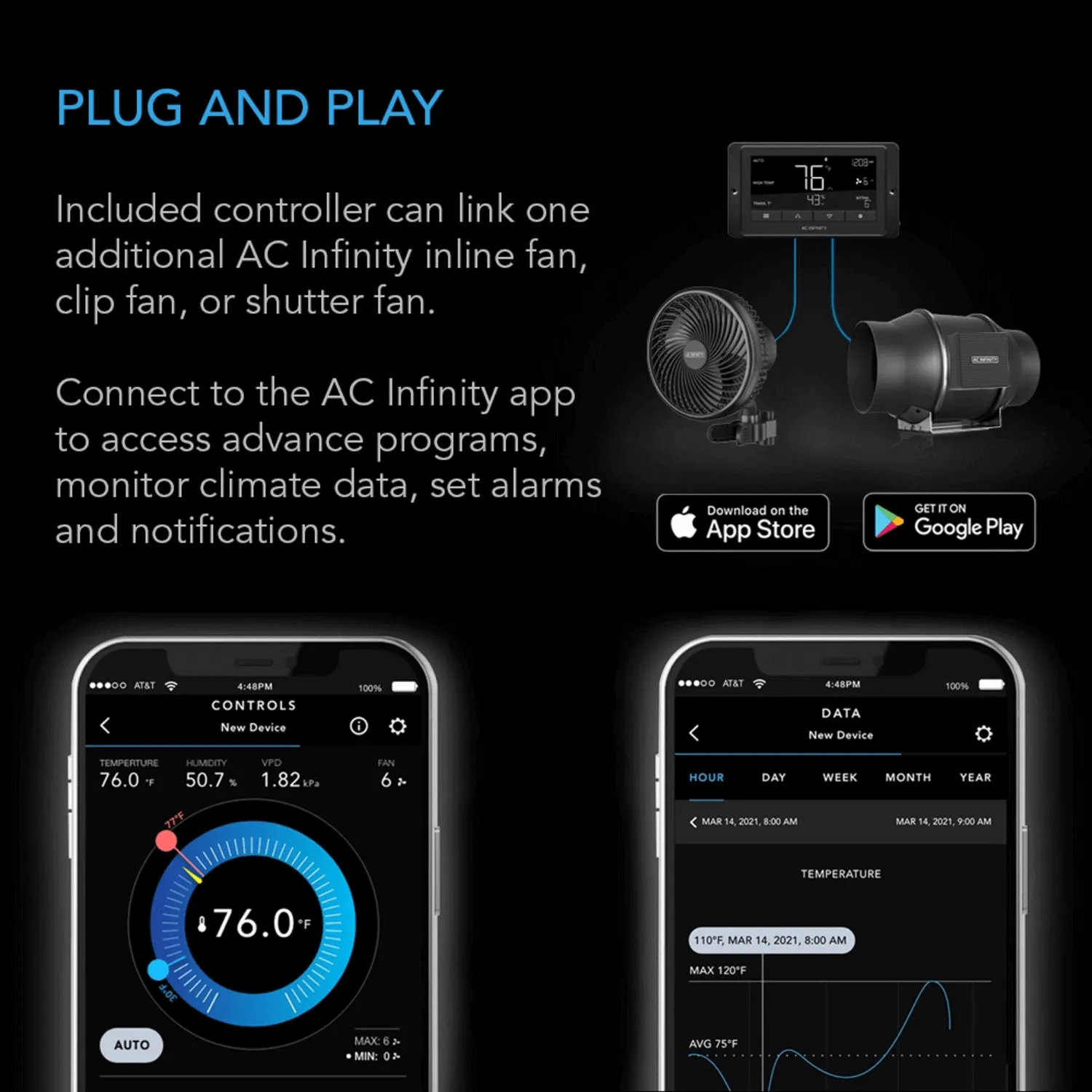

Smart Controller: Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for a variety of uses. Securely connect with the AC Infinity app via Bluetooth to access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can connect to one AC Infinity fan with an EC motor, including other CLOUDLINE fan sizes and CLOUDRAY clip-on circulation fans.

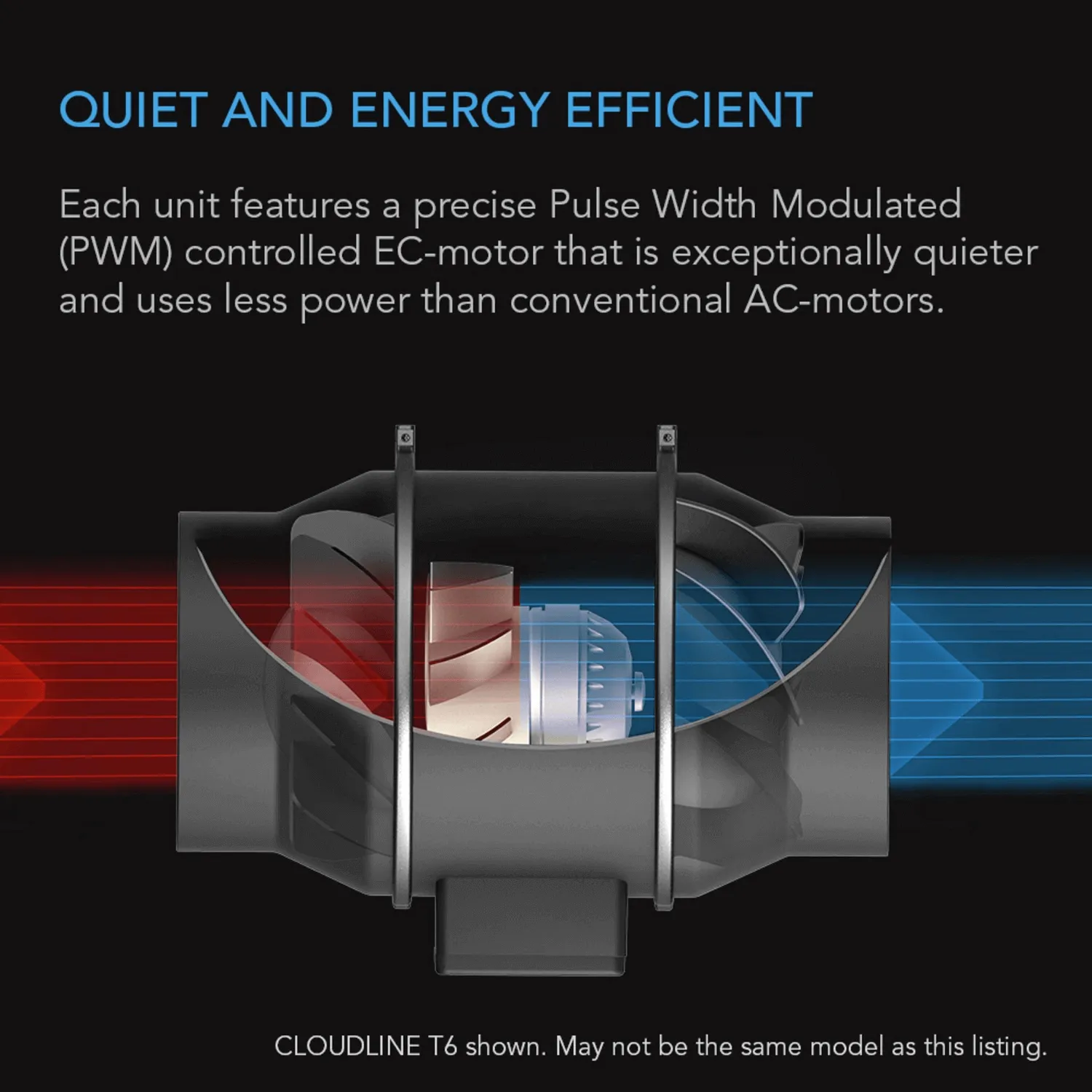

Quiet and Energy Efficient Design: Unlike common duct fans that use an AC-motor which are loud and unmanageable, this duct fan features an EC-motor that is controlled using PWM (Pulse Width Modulation). This technology enables motors to be able to run smoothly at extremely low RPM speeds without generating additional heat or noise. In addition, the duct fan uses a mixed flow design using a stator blade and dual hydrodynamic wind circles. This gives it a high static pressure rating, enabling it to deliver airflow even in applications where air movement is being restricted. The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction. The unit is IP44 rated to be highly resistant to dust and liquids, and performs well even in harsh environments.

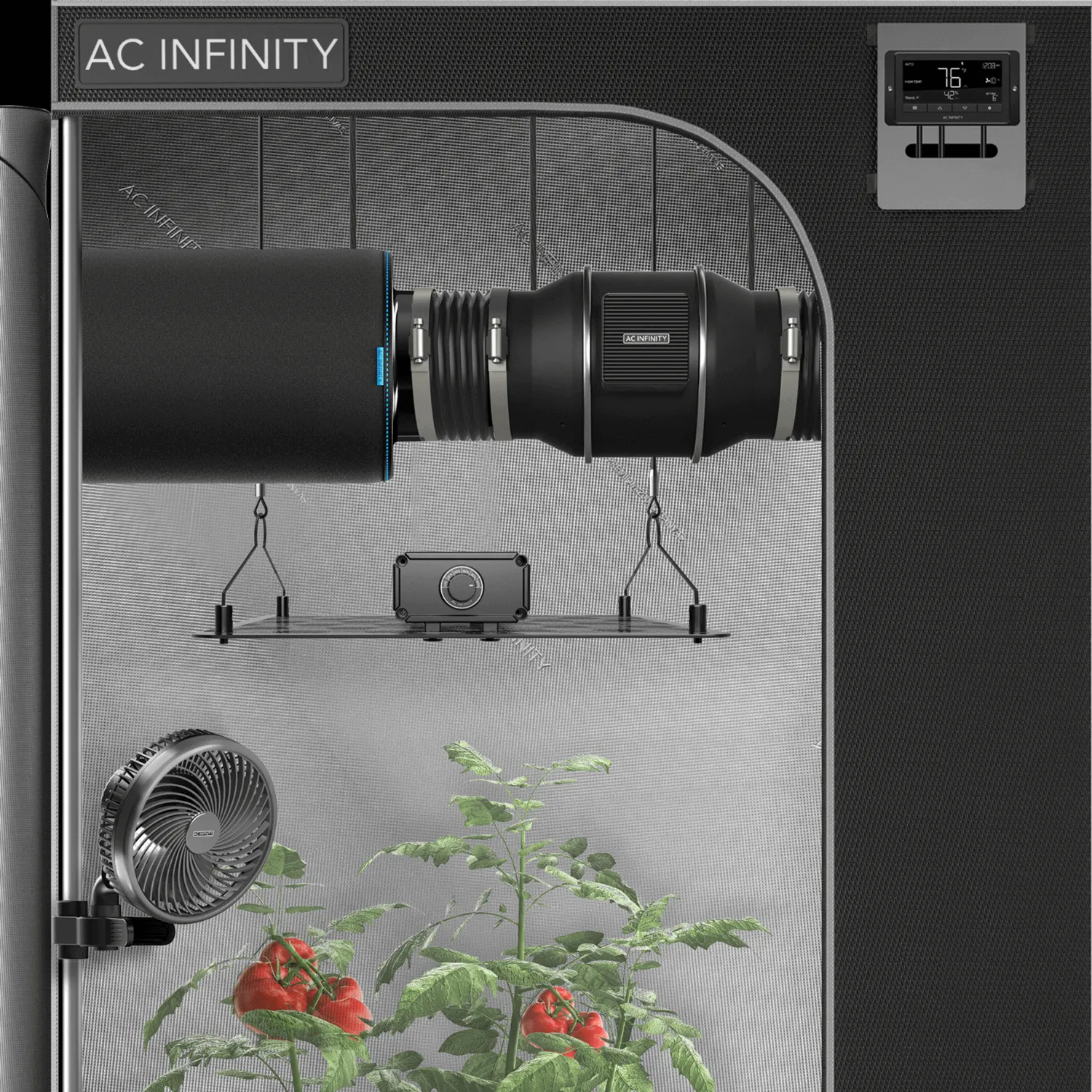

Application: This quiet duct fan system is popular in a variety of applications including cooling AV equipment rooms, closets, racks, and cabinets. Due to its low noise and advanced control features, it’s also used in various air circulation and ventilation projects including hydroponic grow rooms and tents, exhausting bathrooms and attics, and other installations.

Specifications

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE T4

Product Model: AI-CLT4

UPC Code: 854759004785

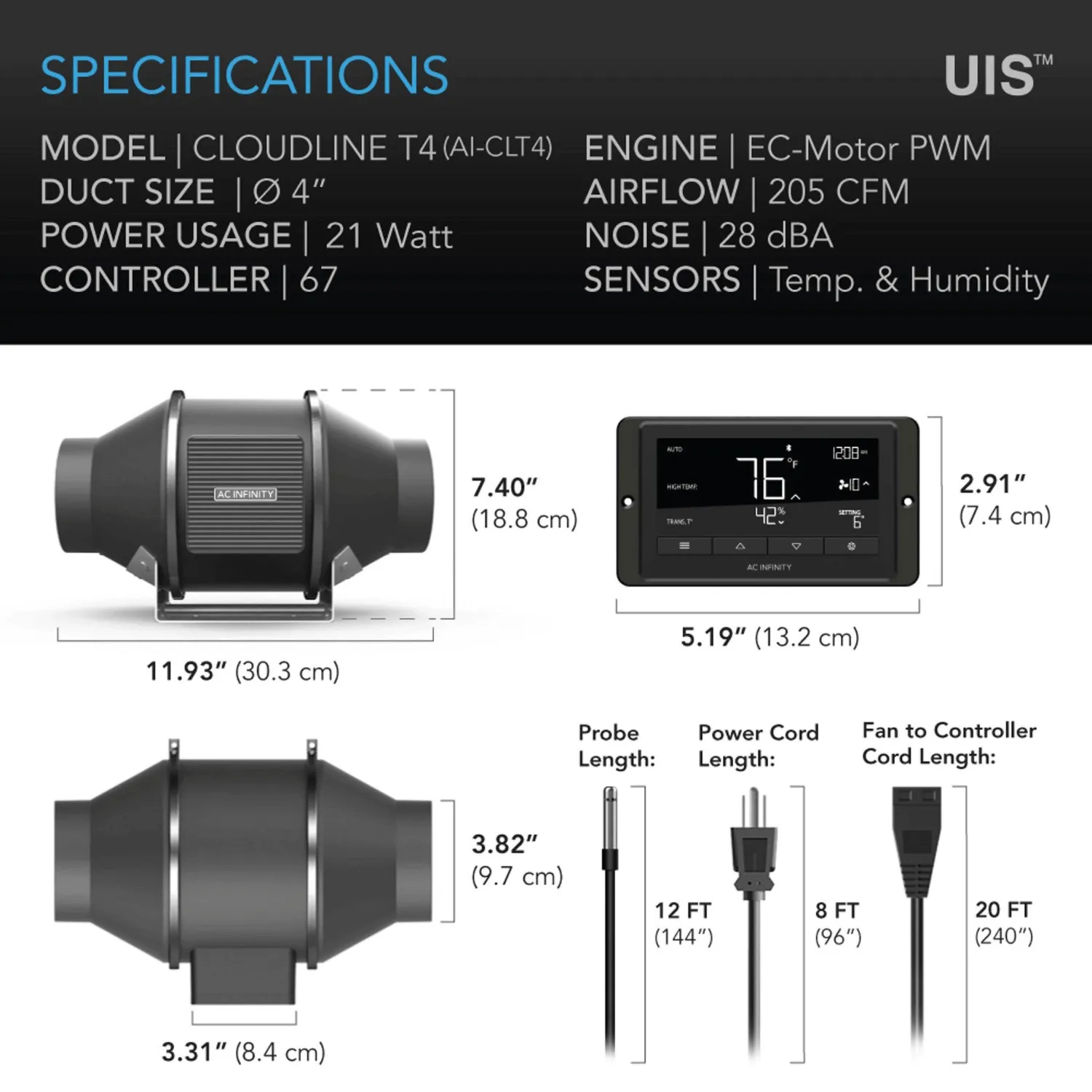

Product and Mounting Dimensions - Fan Unit

Duct Size: 4"

Total Dimensions: 7.40 x 11.93 x 6.93 in. (18.8 x 30.3 x 17.6 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Size: Ø 0.197 in. (Ø 0.5 cm)

Cord Length to Controller: 240 in. (20 feet)

Cord Length to Plug: 108 in. (9 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Hole to Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)

Screw Hole Size: Ø 0.119 in (Ø 0.3 cm)

Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)

Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs

Total Airflow: 205 CFM

Total Noise: 28 dBA

Max Speed: 2800 RPM

Static Pressure: 223 Pa

Voltage: 100-240V AC

Frequency: 50/60 Hz

Max Power Draw: 28 W

Average Power Usage: 21 W

Current: 1.2 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140°F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheets

Download the data sheet:

Download the CE Certification:

Download the SAA Certification:

Download the ETL Certification:

Download the FCC Certification:

Download the RoHS Certification:
